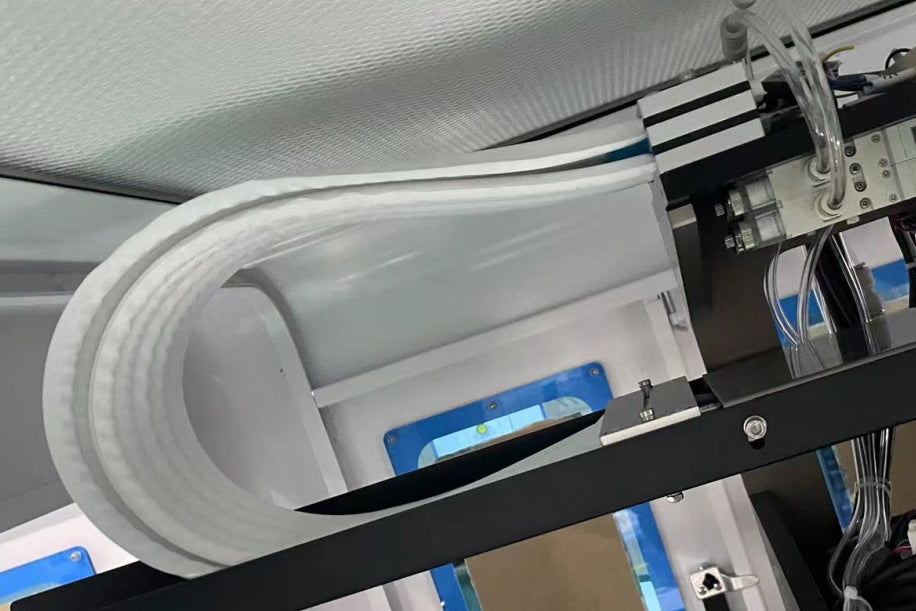

As the requirements for cleanroom environments in semiconductor, new energy, panel manufacturing, and high-precision automation equipment become increasingly stringent, cleanroom drag chains have emerged as critical components for ensuring equipment stability and improving product yield. This guide aims to provide equipment engineers, procurement professionals, and decision-makers with a systematic and clear methodology for selecting the most suitable Guangrou cleanroom drag chain product. It is designed to help users quickly and accurately identify the optimal solution based on their specific application scenarios, achieving the best balance between performance, cost, and delivery.
Backed by R&D support from a team of PhDs from the Chinese Academy of Sciences, the Guangrou brand has mastered the complete industrial chain from PTFE (Teflon) core material formulation to finished product manufacturing, positioning itself as a leading domestic brand for high-end cleanroom drag chain localization. Our goal is to become your trusted partner through outstanding product performance, flexible customization capabilities, and rapid service response.
Chapter 1: Overview of Guangrou Cleanroom Drag Chain Product Series
The Guangrou cleanroom drag chain product line is comprehensive, offering flexible choices based on different cleanliness levels, installation methods, maintenance needs, and travel lengths.
| Series | Model Example | Core Features | Cleanliness Level | Typical Application Scenarios |
|---|---|---|---|---|
| Enclosed Cleanroom Drag Chain | GRD Series | Fully sealed tube bundle design, one-piece PTFE protective cover, offering the best dust protection. | ISO Class 1 (Class 100) | Lithography machines, wafer defect inspection, semiconductor packaging, and other equipment with the highest cleanliness requirements. |
| Open-Style Cleanroom Drag Chain | GRC-T Series | Side snap-open design for easy cable installation, inspection, and replacement, facilitating maintenance. | ISO Class 3 (Class 1000) | Equipment requiring frequent cable or connector changes, such as test platforms, R&D prototypes, and legacy production line upgrades. |
| Bellows-Style Cleanroom Drag Chain | GRS Series | Claw-type reverse zip structure secured with special clips, internal spacers isolate cables. | ISO Class 3 | Applications with compact spaces and short travel requiring good flexibility, e.g., medical devices, small automation units. |
| Flat Cable Assemblies | - | Highly flexible ESD-resistant cable harnesses, integrated PTFE film wrapping, extremely small bending radius. | ISO Class 1 | High-speed data transmission in extremely confined spaces, e.g., lithography steppers, humanoid robot joints, AI data centers. |
| Cleanroom Plastic Drag Chain (Silent) | - | Universal silent drag chain, very high operating speed, low coefficient of friction. | ISO Class 1 (at low speeds) | Applications requiring high-speed reciprocating motion in non-extreme cleanroom environments, e.g., general automation equipment. |
Chapter 2: Core Selection Parameters and Decision Process
Correct selection begins with accurate assessment of key parameters. Please collect information following the steps below and consult with our engineers.
2.1 Essential Core Parameters to Provide
-
Cable Parameters:
- Cable types (power, signal, encoder, air tubes, etc.).
- Accurate outer diameter for each cable type.
- Total number of cables and routing requirements.
-
Motion Parameters:
- Travel Length: Maximum movement distance of the moving part.
- Operating Speed: Average and maximum speed (m/s or ft/s).
- Acceleration: Acceleration/deceleration values during starts/stops (G or m/s²).
-
Installation Space Constraints:
- Installation Height (H): Available vertical space for the drag chain on the machine.
- Installation Width: Available width for the drag chain's lateral movement.
- Safety Height (HD): Maximum possible raised height of the chain during operation. Sufficient clearance must be reserved to prevent interference.
-
Environmental & Performance Requirements:
- Cleanliness Class: e.g., ISO Class 1, 3, 5, or equivalent Fed. Std. 209E Class.
- Flame Retardancy Rating: e.g., UL94 V-0.
- ESD (Electrostatic Discharge) Requirement: Surface resistivity range (e.g., 10⁶ - 10⁹ Ω).
- Operating temperature range.
2.2 Travel Length vs. Support Chain (Backbone) Selection Guide
The support chain (backbone) is crucial for supporting long-travel drag chains, preventing excessive sagging or lifting. Selection guidelines are as follows:
| Travel Range | Recommended Backbone Configuration | Notes |
|---|---|---|
| 0 - 600 mm (0 - 24 in) | No backbone required | Short-travel applications, stability maintained by the chain's own structure. |
| 600 - 1,500 mm (24 - 59 in) | Configure R40 Backbone | Medium travel, provides basic support and increased stability. |
| 1,500 - 2,400 mm (59 - 94 in) | Configure R70 or GR70 (Reinforced) Backbone | Standard configuration for long travel. GR70 is reinforced for higher strength. |
| > 2,400 mm (up to 6,000+ mm / >94 in) | Configure R125 Large Backbone | Dedicated solution for extra-long travel, ensures smooth operation without collapse risk. |
Formula Reference: Total Drag Chain Length ≈ (Travel / 2) + (Bending Radius × π + 200 mm / 8 in) + (Clamp Width × 2)
Chapter 3: Application Scenarios & Pain Point Solutions
3.1 Semiconductor Manufacturing
- Scenarios: Wafer defect inspection, lithography machines, chip packaging equipment, semiconductor sorting machines.
- Pain Points: Nanoscale processes are intolerant to microparticles. Dust generation from traditional chains leads to yield loss and equipment contamination.
- Guangrou Solution: GRD Series fully enclosed design. The cover material has an extremely low friction coefficient (0.04), with particle emission during operation far below Class 1 standards, eliminating contamination at the source.
3.2 New Energy (Lithium Battery)
- Scenarios: Stacking machines, battery leak detection equipment, automatic laminating machines.
- Pain Points: High-speed operation and vibration cause cable abrasion; electrolyte environment demands corrosion-resistant materials.
- Guangrou Solution: GRS/GRC Series with vibration-resistant structure. PTFE material offers excellent chemical resistance, extending cable assembly life in harsh environments.
3.3 Panel Display (LCD/OLED)
- Scenarios: OLED laminators, LCD sorting equipment, AOI visual inspection systems.
- Pain Points: Organic light-emitting materials are prone to adsorbing outgassed substances from plastics; long-travel handling systems require extremely smooth chain operation.
- Guangrou Solution: Use of low-outgassing material formulations. For long-travel systems, GR70 or R125 backbones are configured to effectively suppress lifting and swaying, ensuring positioning accuracy.
3.4 Cleanroom Upgrade for Legacy Production Lines
- Pain Points: Long upgrade cycles, high costs, need for complete cable redesign, significant downtime losses.
- Guangrou Solution: Primary choice is the GRC Open-Style Series. It can directly encapsulate existing cable harnesses without replacing connectors, enabling rapid installation and switchover, significantly reducing upgrade time and cost.
Chapter 4: Installation, Delivery & Service
4.1 Delivery Options
| Delivery Option | Description | Suitable For | Rating |
|---|---|---|---|
| Turnkey Delivery | Guangrou supplies all cables, components, and complete assembly. | Customers seeking quality control, overall cost savings, and full after-sales support. | ★★★★★ |
| Semi-Knocked Down (SKD) | Customer provides cables, Guangrou assembles per drawings. | Customers with specified or special cables. | ★★★☆☆ |
| Completely Knocked Down (CKD) | Only drag chain components supplied, customer handles cabling/assembly. | Customers with professional assembly teams and extreme cost sensitivity. (Note assembly risks) | ★★☆☆☆ |
Recommendation: For optimal product performance and after-sales service, Turnkey Delivery is strongly recommended.
4.2 Key Installation Considerations
- Bent-State Installation is Mandatory: Never tighten the second end clamp with the chain in a straight position. Install by bending the chain into its working "S" shape to ensure tight layer contact and eliminate gaps.
- Ensure Fixed Straight Section: Maintain a minimum 100 mm (4 in) straight, fixed section from the clamp outlet to the start of the bend to prevent improper stress on cables and covers.
- Reserve Safety Clearance (HD): Ensure the maximum possible raised height (HD) of the chain at full travel does not interfere with any machine structure.
- Use Professional Guidance: We provide detailed SOPs, installation videos, and on-site technical support. Familiarize yourself with the process before self-installation or contact our engineers.
Chapter 5: Guangrou Core Advantages & Comparison
5.1 Technical Advantages
- In-House Material R&D: Mastery of PTFE core film formulation and production process. Tested wear resistance exceeds most domestic counterparts.
- Patented Structure: Holds multiple patents for support chain systems, sealing structures, etc., ensuring stable operation for long travels (up to 6 meters).
- Advanced Process: Fully automated production lines ensure stable key process parameters and excellent product consistency.
5.2 Market & Value Comparison
According to QYResearch, Guangrou is positioned in the first tier of the China high-end cleanroom drag chain market (alongside players like Igus, Tsubaki).
| Comparison Dimension | Guangrou | Typical International Brand | Typical General Domestic Brand |
|---|---|---|---|
| Cleanliness Level | ISO Class 1 | ISO Class 1 | Varies, often lower |
| Bending Cycle Life | ≥10 million cycles | ≥10 million cycles | Typically lower |
| Max. Supported Travel | Up to 6 m (R125) | Typically ≤ 2.6 m | Typically ≤ 2 m |
| Delivery Lead Time | Small batch: 1-3 days, Standard: 5 days | Several weeks to months | 15-20 days |
| Price Level | ~1/3 of int'l brands for comparable performance | Premium | Lower, but performance/stability often lacking |
| Service & Support | Localized teams in South/East China, rapid on-site support. | Slower response, often via distributors. | Limited service capability. |
| Global Certifications | ISO 9001, UL, RoHS compliant. Materials tested per industry standards. | Extensive global certification portfolio. | May have basic certifications. |
5.3 Selection Software Support
Guangrou is a pioneer in offering dedicated cleanroom drag chain selection software. Engineers can input basic parameters to quickly generate 3D models and 2D drawings, significantly improving selection efficiency and reducing design errors.
Conclusion
Selecting the right cleanroom drag chain is a vital step in ensuring the long-term reliability of precision equipment and enhancing product competitiveness. Guangrou is committed to providing high-value, localized high-end solutions through our proprietary core material technology, complete and controlled production system, and efficient, flexible service.
We look forward to partnering with you to bring more reliable and cleaner power transmission to your equipment.
Contact our technical team for dedicated selection support and customized solutions.
Huizhou Zhongke Intelligent Technology Co., Ltd.
www.grpodcn.com | laiyan@grpod.com
Global Technical Support: +86-159-158-05428
The content of this guide is for reference only. Specific technical parameters are subject to formally approved drawings and agreements.
